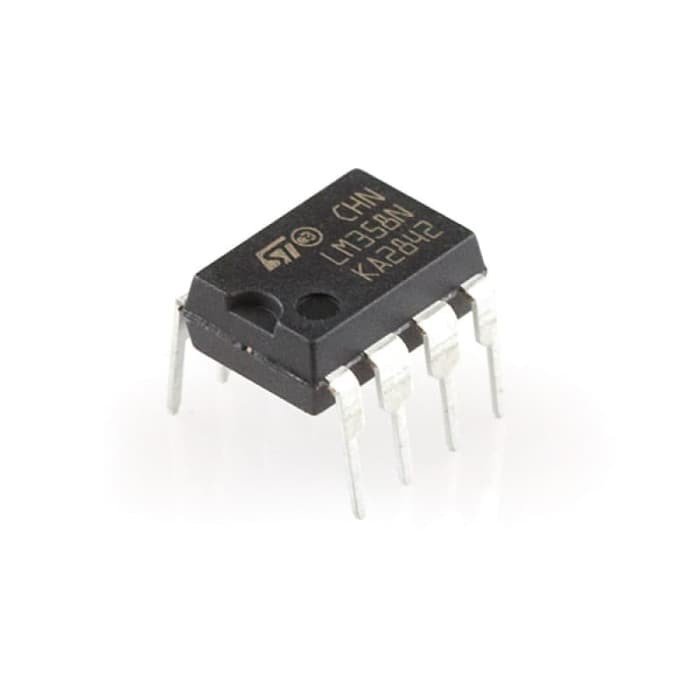

IC LM358 Dual OPAMP OP-AMP DIP 8 Pin Operational Amplifier
IC LM358 Dual OPAMP OP-AMP DIP 8 Pin Operational Amplifier (IC Op-Amp LM358, IC Penguat Sinyal 8 Pin, Dual Operational Amplifier DIP8, Komponen Elektronika Analog)
Halo Kawan Eazyfast!
Lagi butuh komponen handal buat menguatkan sinyal sensor di project elektronikmu? IC LM358 ini siap jadi solusi praktis dan efisien untuk berbagai rangkaian analog yang sedang kamu buat. Yuk sempurnakan project DIY elektronika kamu bareng Eazyfast!
FUNGSI UTAMA:
Komponen penguat operasional (operational amplifier) dual channel yang dirancang efisien untuk bekerja dengan sumber daya tunggal (single supply) maupun ganda.
APLIKASI UMUM:
- Rangkaian sensor dan penguat sinyal analog
- Modul mikrokontroler / IoT / Arduino
- Prototyping breadboard dan project elektronika DIY
- Audio pre-amplifier sederhana dan catu daya
SPESIFIKASI SINGKAT:

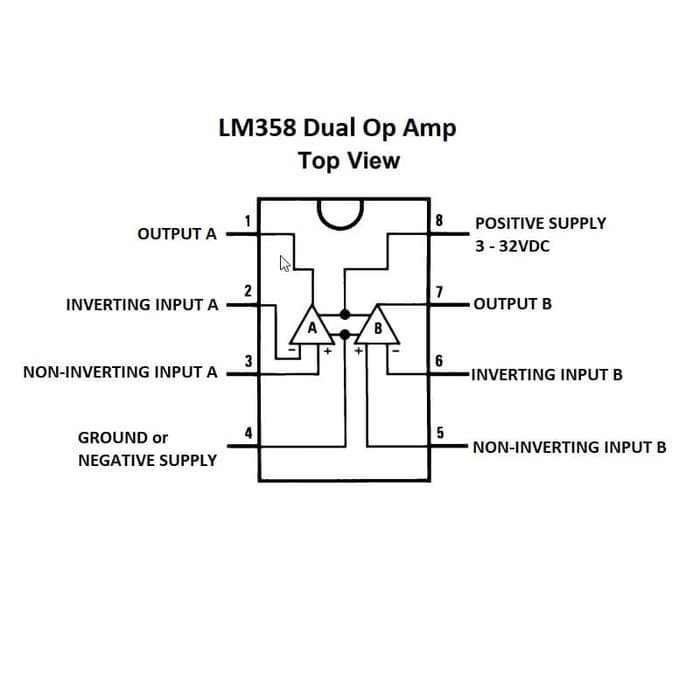

- Tipe: Dual Operational Amplifier (2 Channel, setara setengah LM324)
- Tegangan Kerja: Single Supply (3.0V hingga 32V) atau Split Supply
- Fitur Proteksi: Short Circuit Protected Outputs & ESD Clamps
- Package: DIP-8 (Through-hole / mudah disolder)
INFO PENTING:
-
ISI PAKET:
- 1x LM358P LM358 DIP-8 SINGLE SUPPLY DUAL OPERATIONAL AMPLIFIER OP-A
--------------------------------------------
CATATAN :
- Harga tertera untuk 1 pcs (kecuali tertulis paket/set pada judul & varian).
- Jika produk bisa dimasukkan ke keranjang berarti barang ready stock, silakan langsung diorder saja
- Silakan order sebelum jam 15.00 WIB (Senin - Jumat) atau jam 12.00 WIB (Sabtu) agar pesanan dapat dikirim pada hari yang sama :)
- Estimasi penyiapan paket kurir Instant ± 1 jam (pada jam operasional toko)
- Jika perlu QTY banyak atau Foto stok asli boleh chat admin dulu ya :)
- Eazyfast Store berpengalaman menyediakan part teknik sejak 2017 dengan pengemasan aman (bubble wrap gratis), serta melayani pengadaan partai besar/B2B dengan harga khusus silahkan chat admin.
Note : Wajib sertakan video unboxing utuh tanpa jeda saat paket diterima sebagai bukti komplain jika ada ketidaksesuaian barang.
Rp1.900
64 tersedia
64 tersedia
Spesifikasi
Ukuran
| Weight | 0,01 kg |
|---|---|
| Dimensions | 5 × 5 × 1 mm |
Salah satu IC OP-Amp paling populer adalah IC ini gan, LM358. IC amplifier 2 channel ini mudah digunakan karena bisa bekerja dengan positive supply saja dari 3-32V. Kalo project agan simple, cuman pengen nge-amplify sinyal, LM358 udah lebih dari cukup dah 😀
Mari di ORDER !!!!
Description
Utilizing the circuit designs perfected for Quad Operational Amplifiers, these dual operational amplifiers feature low power drain, a common mode input voltage range extending to ground/V, and single supply or split supply operation. The LM358 series is equivalent to onehalf of an LM324.
These amplifiers have several distinct advantages over standard operational amplifier types in single supply applications. They can operate at supply voltages as low as 3.0 V or as high as 32 V, with quiescent currents about onefifth of those associated with the MC1741 (on a per amplifier basis). The common mode input range includes the negative supply, thereby eliminating the necessity for external biasing components in many applications. The output voltage range also includes the negative power supply voltage.
Features
– Short Circuit Protected Outputs
– True Differential Input Stage
– Single Supply Operation: 3.0 V to 32 V
– Low Input Bias Currents
– Internally Compensated
– Common Mode Range Extends to Negative Supply
– Single and Split Supply Operation
– ESD Clamps on the Inputs Increase Ruggedness of the Device without Affecting Operation
– NCV Prefix for Automotive and Other Applications Requiring Unique Site and – Control Change Requirements; AECQ100 Qualified and PPAP Capable
– These Devices are PbFree, Halogen Free/BFR Free and are RoHS Compliant EE
Paket : 1x LM358P LM358 DIP-8 SINGLE SUPPLY DUAL OPERATIONAL AMPLIFIER OP-A
